How to Connect your Arduino to Loconet

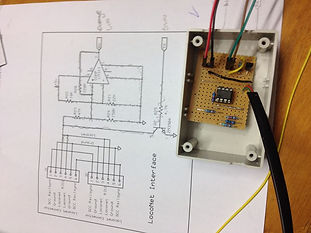

You are going to have to make 1 little circuit, or geta friend to make it for you.
Fortunatly it is a very simple circuit. In time I will put a how to step by step up here for you.
Under the downloads page, you will find the drawing and the link to where I found it. It is in the LocoNet download link
These parts can be purchased from your local electronics store. In australia this would be Jaycar.
I strongly suggest you buy the IC socket, it means you wont accidently damage the IC (LM311)
The components are less than $10, and the vari board is about $6 in Australia. Of course ebay it would all be a lot cheaper but you would be buyinga larger quantity.
Component List
-
1 x LM311 Comparator
-
1 x 2N3904 Transistor
-
R21 = 22K Resistor
-
R22 = 10K Resistor
-
R23 = 47K Resistor
-
R24 = 150K Resistor
-
R25 = 4.7K Resistor
-
A piece of Vari Board, the small one is fine (3" x 3"
-
Optional 8 pin IC socket
